After 20+ years of welding, I can say the Miller Digital Elite is one of the most reliable auto-darkening helmets I’ve ever used! It’s tough, responsive, and loaded with features that make long hours more bearable. But one issue keeps popping up: the BATTERIES.
More than once, I’ve had the lens flicker, slow down, or stop reacting mid-weld. It’s easy to assume a sensor’s failing, but most of the time, it’s just LOW batteries. The warning light is there, but when you’re focused on a job, it’s easy to miss until you lose visibility.
If you’ve never changed the cells in a Miller Digital Elite welding helmet, it’s not super intuitive. The compartments are hidden behind the lens assembly, and opening them can be tricky if you don’t know how.
That’s why I put this guide together—to walk you through the process step by step, and save you time, frustration, and guesswork.
What Batteries Does The Miller Digital Elite Use?
The Digital Elite runs on two non-rechargeable CR2450 lithium coin batteries—the same kind you’ll find in most auto-darkening welding helmets like ESAB’s A60 and Lincoln’s 3350. These 3-volt batteries provide around 600 mAh of power to support both the auto-darkening lens (ADF) and the digital controls. They’re critical for ensuring accurate shade levels, fast switching, and overall reliability.
If you check the user manual, you’ll see Miller lists the official part number as 217043. That’s the number to reference when buying replacements. Most major brands make CR2450s—Panasonic, Energizer, Duracell— all are good, but personally, I prefer Panasonic for this hood.
I know plenty of welders who use Energizer, but I’ve had issues with loose contact under heavy vibration or heat fluctuations. But, there’s no brand loyalty here—use whatever works for you, as long as it’s the right type.
Now, in terms of battery life, it varies. My first pair lasted about 8 MONTHS with regular, almost daily use. Some of my welding buddies have pushed the same cells for nearly two years. It all depends on how often and how long you’re welding.
One thing I do that definitely helps: I always remove the batteries when I’m not using the helmet for over a week. It’s a habit now. That little step has saved me from dealing with dead cells right when I need it most. Also, I run the Digital Elite mostly in X-mode, which might use a bit more power but gives me better performance.
If you’re storing the welding helmet for a while, definitely take the batteries out and keep them somewhere dry. It’s a small thing, but it makes a big difference in how long your cells—and your hood—last. If you’re interested, here’s a useful guide for proper storage.
How To Change Batteries In Miller Digital Elite?
Before swapping batteries in the welding helmet, make sure they’re actually dead. There are a few signs to look for:
The red low-battery LED on the display panel is the most obvious. If it stays on steadily instead of blinking now and then, your cells are nearly drained. At that point, you’ve got about 48 hours before performance really starts to drop.
If the lens flickers, darkens slowly, or doesn’t respond at all, first check if the power units are seated properly. Sometimes it’s just loose contact. But if everything’s fitted right and the ADF still doesn’t work, the cells are likely shot.
Once you’re sure the issue is battery-related, it’s time to replace them. Here’s how to do it:

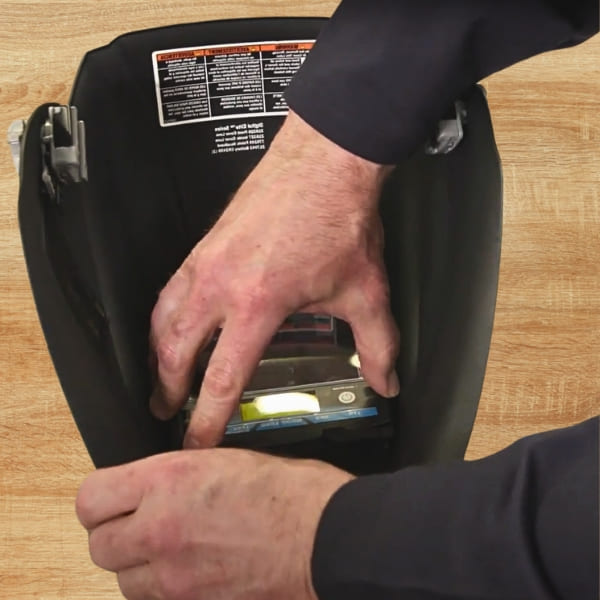

Step 1: Remove the Auto-Darkening Lens Assembly
Start by taking the lens assembly out of the shell of the Miller Digital Elite welding helmet.
- Set the helmet on a soft, flat surface to avoid scratches or damage.
- Look along the edges of the lens assembly inside the hood.
- You may need a small flathead screwdriver or a pocket knife to gently pry the edges free. Take your time—don’t force it.
- Carefully slide the entire ADF (auto-darkening filter) unit out of the helmet.
Tip: If it feels stuck, double-check that nothing is catching on the shell’s interior. Wiggling gently side-to-side usually helps loosen it without damage.
Step 2: Locate and Slide Out the Battery Trays
Once the lens assembly is out, flip it over to find the two battery trays at the top.
- They’re positioned along the top edge, and you should see small notches or finger tabs.
- Use your fingernail or a non-metallic tool to slide the trays outward.
- Pull gently until each tray pops out completely.
Important: The left and right trays are not interchangeable—remember which tray came from which side.

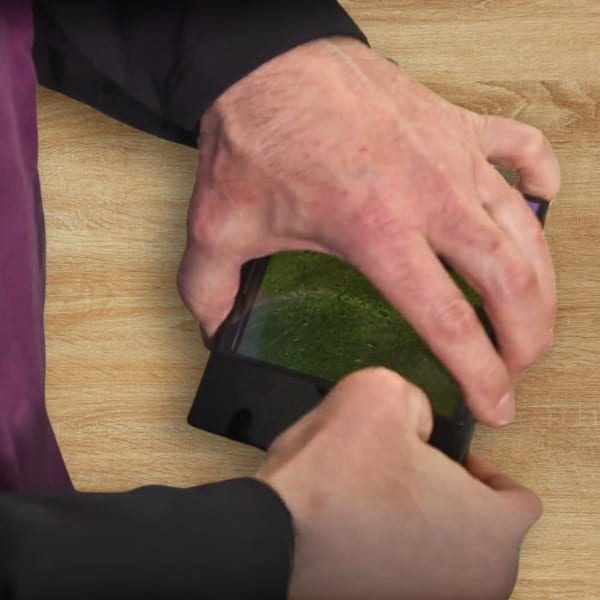

Step 3: Remove the Old Batteries
Each tray inside the welding helmet holds a single CR2450 battery.
- Remove the old batteries by pushing them gently from the side or prying them up carefully with a non-metallic tool (or, insulated).
- Avoid using anything sharp or metal that might bend the contact tabs or scratch the tray.
Dispose of the old cells from your Digital Elite properly—don’t toss them in regular trash. Look for your local battery recycling drop-off.

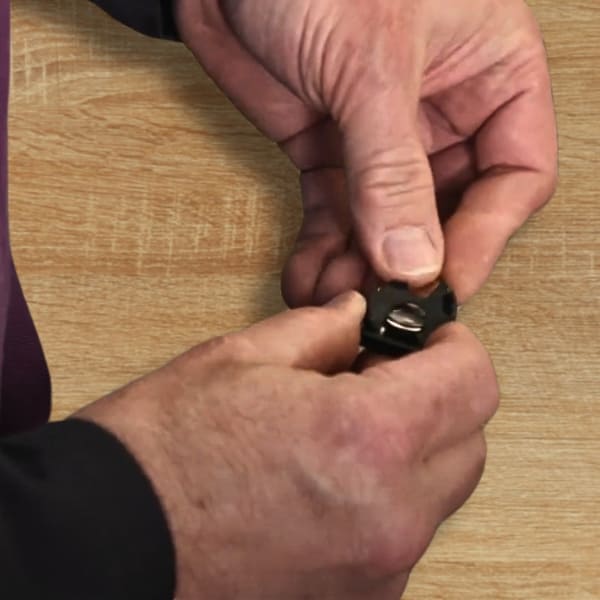

Step 4: Insert the New CR2450 Batteries (Positive Side Up)
Grab a fresh pair of CR2450 lithium coin batteries.
- Place one battery in each tray, making sure the positive (+) side is facing up, toward the inside of the helmet shell.
- Press them in gently until they sit snug and flat in the trays.
Using quality cells matters. I recommend Panasonic for the best fit, but as long as it’s a CR2450 from a reliable brand, you should be good.

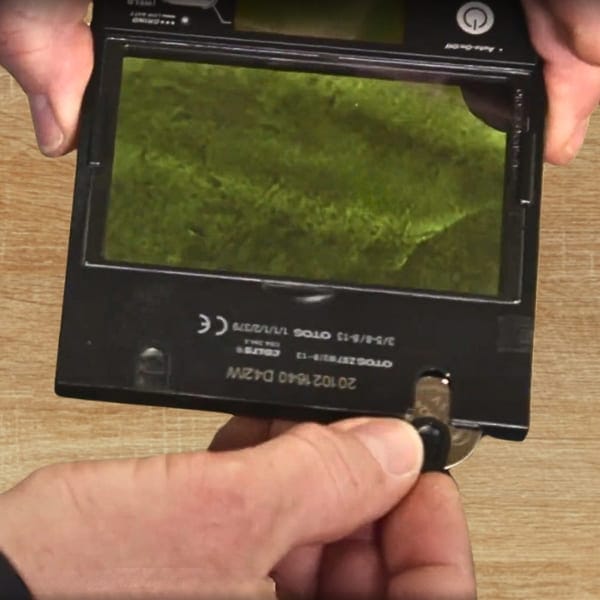

Step 5: Reinsert the Battery Trays Carefully
Now it’s time to slide the trays back into the lens assembly.
- Be sure to return each tray to its original side—mixing them up will cause the Miller helmet to malfunction.
- Push each tray in firmly but gently until it’s fully seated and flush with the edge of the lens unit.
Double-check that the trays sit evenly and that there’s no gap.
Step 6: Power On and Check Battery Status
Flip the lens assembly over and press the ON button located just below the display screen of your Miller Digital Elite.
- If the screen powers up and shows a full battery icon, you’re good to go.
- If not, remove the trays, check for proper battery alignment, and reinsert. Loose contact is often the culprit, especially with off-brand cells.
Still not turning on? Try a different set of fresh power units to rule out quality issues.

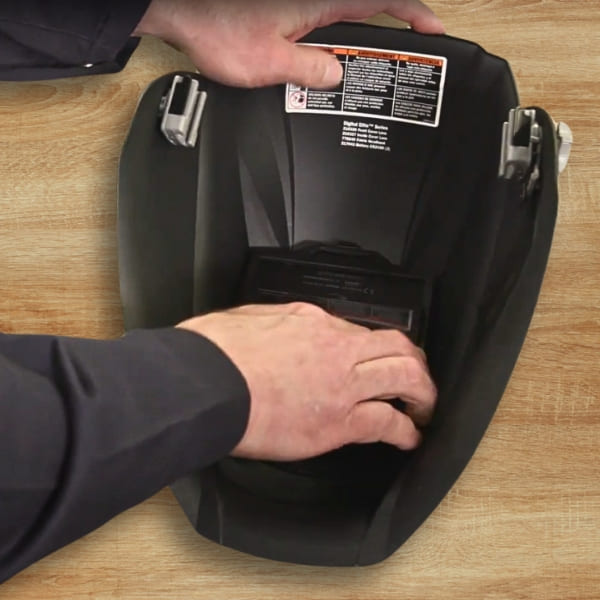

Step 7: Reinstall the Lens Assembly Into the Welding Helmet
Once everything checks out, reinstall the lens assembly into the helmet shell. This is also a part of the process of lens replacement.
- Align it properly with the inner frame of the hood.
- Press it gently but firmly into place—it should sit flush and lock into position without forcing.
Give it a quick inspection to make sure everything is seated correctly.
That’s it. The whole process takes less than five minutes once you’ve done it a couple of times. Still, I always recommend reading the user manual just to be safe and follow any specific guidance from Miller.
One personal recommendation—always keep a few spare CR2450 batteries in your kit. You never know when a pair will give out. Temperature changes, heavy use, or even long-term storage can drain them faster than you’d expect. Having backups on hand means you won’t be stuck mid-job or scrambling to find replacements when you need your helmet most.
Also Read: How To Use Miller Digital Elite Properly?
Expert Tips from the Field
Having worked with multiple Miller Digital Elite auto-darkening welding helmets, I want to share some hard-earned tips to help you keep the battery system performing flawlessly:
Use Quality Batteries: Always use CR2450 cells from reputable brands. While cheaper options from lesser-known companies might save you a few bucks upfront, in my experience, their long-term performance and longevity are often compromised.
Switch to X-Mode When Needed: For optimal battery performance, switch to X-mode when welding in bright ambient light or situations where the sensors on your helmet might be obstructed.
Manually Power Down: Although the welding helmet is designed to power down automatically after a period of inactivity, I recommend turning it OFF manually using the button to prevent any background battery drain.
Replace Both Batteries Together: Always replace both cells at the same time, even if only one appears to be drained. Mixing old and new power units can cause uneven power discharge, leading to erratic performance of the ADF lens.
Ensure Proper Tray Alignment: The battery trays in Miller’s Digital Elite helmets are precision-fit, so make sure each tray is properly aligned in its correct slot before reassembling the lens. If a tray doesn’t fit correctly, or if you accidentally swap the left and right trays, the hood may perform erratically and draw more power than necessary.
Replace Batteries Promptly: Never wait until the cells are completely dead—the slowing down can cause a lag in the ADF performance. Try to replace them within 48 hours after the warning light comes on steadily.
Keep Battery Trays Clean: Before inserting new cells, gently clean the battery trays with a soft, lint-free cloth to prevent dust or dirt buildup that can block power flow. Avoid using liquid cleaners on the batteries, as they can cause corrosion and damage.
As you can see, changing the old CR2450 batteries in your Miller Digital Elite auto-darkening welding helmet is not really a big deal. If you ask me, it is one of those essential, fundamental steps to becoming a seasoned welder!
I get it — it’s natural to assume it’s a complicated, time-consuming job when you don’t know what to expect. But now that you’re familiar with the few easy steps involved, mark my words — it will take less than 5 minutes to replace them with new ones, even if it’s your first time.
So, next time that low-battery light glows, you’ll be ready to keep your hood in top shape and your focus sharp, ensuring it’s always ready to perform when you most need it.
Key Takeaways
Power-related issues in the Miller Digital Elite helmet are surprisingly common, but almost always easy to fix. Most flickering or slow response problems come down to low or dying CR2450 batteries, not hardware failure.
This welding helmet uses two CR2450 lithium coin cells to power both the auto-darkening lens and the digital interface. Stick to quality brands like Panasonic or Energizer to avoid poor contact or premature drain.
Before installing new power units, give the trays a quick wipe with a lint-free cloth to ensure solid contact and steady performance.
Though the battery compartments are tucked behind the lens assembly, replacing them is quick and simple once you’ve done it once, usually under five minutes.
Always replace both batteries at the same time. Mixing old and new cells leads to uneven discharge and inconsistent lens performance.
Keep a few spare CR2450s in your gear bag. Power loss can happen suddenly, especially during heavy use or temperature swings.
Running the helmet in X-mode improves performance in tricky lighting but uses more power. Expect a shorter life in that mode.
Even though the welding hood auto-shuts off, pressing the OFF button manually can help preserve battery life between uses.
If storing the helmet for more than a week, remove the batteries and store everything in a dry place to avoid corrosion and draining.
