If you’re picking up a Miller Digital Elite auto-darkening welding helmet, I’m guessing you’re not just doing the odd weekend weld. Whether it’s a custom project in your garage or serious metalwork on the job, this hood can handle it—but only if you know how to SET IT UP right.
Trust me, once you get into features like ClearLight 4C lens tech, AutoSense, and X-Mode, figuring out the perfect sensitivity, delay, and shade settings can feel more like setting up a DSLR than getting ready to weld. And if you just wing it like I did at first, you’ll end up with inconsistent results—or a nasty eye strain.
That’s why I put this guide together. It’s straight to the point, based on real use, and helps you skip the trial-and-error phase so you can weld with more confidence (and less frustration).
Adjusting Shade Number On Miller Digital Elite
Like any professional auto-darkening welding hood, your Digital Elite helmet also supports variable shade control, powered by a pair of coin batteries. You can access this feature using the buttons on the helmet’s control panel.
For WELDING, the shade range is DIN 8 to 13. For CUTTING, it’s DIN 5 to 8, and for GRINDING, it’s fixed at DIN 3. This hood also features an advanced function called X-Mode, which operates within the DIN 8 to 13 range. We’ll dive deeper into X-Mode shortly—but first, let’s walk through how to adjust the shade number. While there is a generalized process, the steps below are specifically tailored to the Miller Digital Elite:
- Step 1: Press the automatic ON/OFF button to turn on the ADF. The lens will darken twice and then return to a clear state.
- Step 2: Press the MODE button to select the appropriate mode for your task. The available options are Weld, Cut, Grind, and X-Mode.
- Step 3: Use the LTR (lighter) and DKR (darker) buttons on the control panel to adjust the lens shade. You can increase or decrease the DIN number depending on your welding needs. The selected shade will appear on the digital display.
Note: The lens shade level cannot be adjusted in Grind mode—it’s always fixed at DIN 3.
As you can see, adjusting the shade number is straightforward. For the best and safest results, I recommend starting with the darkest shade and gradually lightening it based on the task and your comfort level.
Tweaking Sensitivity Settings
By adjusting the sensitivity of the ADF (auto-darkening filter) of your Miller Digital Elite hood, you can control how quickly your welding helmet lens darkens in response to changing ambient light. The LESS and MORE buttons, located next to the shade adjustment controls, allow you to fine-tune this setting.
Sensitivity levels range from 0 to 10 for all modes—Weld, Cut, and X-Mode—with 10 being the most sensitive. In Grind mode, however, sensitivity is always locked at zero, meaning the ADF will not darken at all. That’s exactly why you should never attempt to strike an arc while in Grind mode—it can leave your eyes unprotected and at serious risk of permanent damage.
Now, based on your lighting environment, follow the steps below to set your helmet’s sensitivity:
- Turn on the ADF by pressing the auto ON/OFF button, then select your desired mode using the MODE button.
- Press the LESS button to lower the sensitivity to its minimum level.
- Position your Digital Elite helmet in the direction you’ll be welding, allowing it to take in the actual ambient light of your workspace. I always recommend this step, as the helmet’s sensors rely on real-time lighting to calibrate properly.
- Press the MORE button repeatedly until the ADF reaches the right sensitivity. The selected level will appear on the digital screen.
- If you notice the lens flickering or flashing during certain operations, slightly reduce the sensitivity to stabilize it.
Once you complete these steps, your auto-darkening helmet should be correctly set for your working conditions. One important note—if the ADF remains dark longer than the set delay time, try reducing the sensitivity. This often prevents unnecessary reactions to ambient light or reflective surfaces.
In general, you may want to lower the sensitivity for short-circuiting MIG or plasma arc cutting, and increase it for low-amp TIG applications like gas tungsten arc welding. That said, I’ve found that a mid-range sensitivity (around 30% to 50%) works well for most welding jobs—you can always fine-tune it from there to match your exact needs.
How To Modify Delay Time In Digital Elite?
By adjusting the delay timer on your Miller Digital Elite welding helmet, you’re essentially controlling how long the ADF (auto-darkening filter) stays dark after you stop welding. Since different fabrication processes produce varying levels of residual arc light, setting the delay time correctly helps protect your eyes, especially during high-amperage applications.
The delay timer ranges from 0 to 10, corresponding to 0.1 to 1 second. Here’s how you can adjust it:
- Step A: Press the automatic ON/OFF button to turn on the ADF (if it’s not already on), and then select your desired mode—Weld, Cut, or X-Mode.
Note: You cannot adjust the delay timer in Grind mode. The same applies to Cut mode, which is preset to the highest sensitivity level (10).
- Step B: Use the SHORT and LONG buttons (located near the sensitivity and shade controls) to change the delay time. The selected value will appear on the digital panel, making it easy to monitor.
Once you’ve set the appropriate delay—after configuring shade and sensitivity—you’re ready to weld with your Miller Digital Elite auto-darkening helmet.
The general idea is simple: the more intense your arc, the longer the delay should be. For example, I typically use a delay of 0.6 to 0.9 seconds for high-amperage jobs like FCAW, SMAW, or GMAW to shield my eyes from the afterglow of the weld pool. For lighter tasks, such as tack welding, a shorter delay—around 0.2 to 0.3 seconds works just fine.
X-Mode: The Real Deal Of Miller Digital Elite
X-Mode is one of the standout features of the Digital Elite hood—and I’ll be honest, I didn’t fully appreciate its value until I had to weld outdoors on a bright summer afternoon. Despite setting the correct shade and sensitivity, my lens kept flickering and misfiring under the sunlight. That’s when I switched to X-Mode, and the difference was immediate.
Unlike standard auto-darkening technology, which relies on light sensors, X-Mode uses electromagnetic sensors to detect the welding arc itself. This means it doesn’t depend on visible light to activate the lens, so sunlight or bright overhead lights don’t interfere with its performance. The moment the arc is struck, the ADF darkens—not just from the flash, but from the electromagnetic field it senses.
The result? Flawless protection, steady visibility, and no more false triggers, even in the most unpredictable lighting.

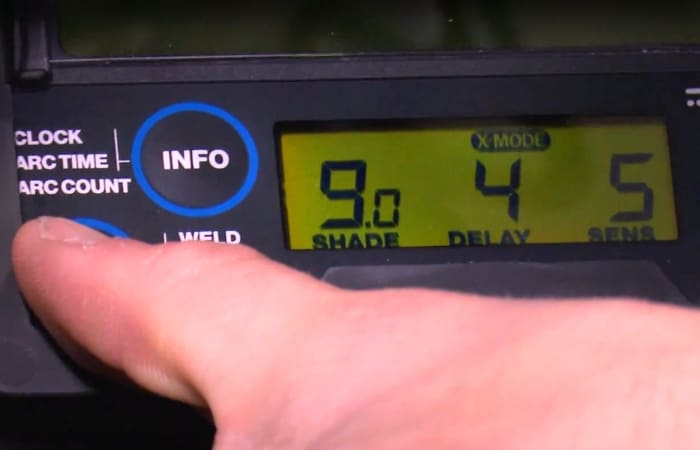

As mentioned earlier, X-Mode operates in shade levels DIN 8 to 13, meaning it’s available only in welding mode. To activate it, simply press the MODE button on your Digital Elite welding helmet until the display indicates X-Mode.
From my experience, here’s when X-Mode really shines:
- Welding outdoors in direct sunlight – no more flickering or flashing.
- Working under bright overhead lighting, especially in high-bay industrial shops.
- Pipeline welding or out-of-position work, where your helmet’s light sensors might get blocked.
- Low-amp TIG welding, where traditional sensors sometimes miss the arc, but X-Mode picks it up instantly.
For me, using X-Mode during low-amperage TIG welding was a game-changer. It was the first time I didn’t get flashed while working at such low current—a problem that used to frustrate me constantly. Now that issue is completely resolved, and honestly, it’s one of the main reasons I believe the Miller Digital Elite is among the best welding helmets out there.
One thing to keep in mind: because X-Mode detects electromagnetic fields, it can pick up arcs from nearby welders. So, I always make sure to maintain at least 12 feet of distance from others when welding in X-Mode to avoid unintended lens activations.
Adjusting The Headgear
To avoid neck and head fatigue—even during long, tedious welding sessions—it’s important to assemble the hood and optimize the weight distribution properly on your head. A well-fitted headgear makes a huge difference in comfort and focus. Let’s go over how to adjust the headgear on your Miller Digital Elite for the best possible fit.
You can fine-tune the headgear in four key ways:
Position the top strap: This helps set the helmet at the right height, ensures proper balance, and prevents it from feeling wobbly or unstable.
Adjust the headgear tightness: Use the knob at the back of the headgear to tighten or loosen the fit until it feels snug but comfortable. This adjustment is essential for helmet stability during movement.
Tweak the forward tilt or viewing angle: On the right side of the headband, you’ll find seven slots. Use these to set the forward tilt of the helmet. Adjusting the tilt helps align the lens to your natural line of sight, giving you a clear and undistorted view of your work area.
Check the distance from your face: Press the black tabs located at the top and bottom of the helmet’s pivot point to slide the headgear forward or backward. Release the tabs when the helmet is positioned correctly. For optimal vision, make sure the lens sits at a consistent and comfortable distance from both eyes.
From my own experience, I always make these adjustments while wearing the helmet. That way, I can ensure the auto-darkening filter (ADF) stays perfectly ALIGNED with my eyes. It’s a small detail, but it makes a big difference in visibility and comfort over long hours of welding.
Properly adjusting your Miller Digital Elite welding hood is the key to unlocking its full potential, because even the most advanced helmet won’t perform at its best without the right setup.
It might be tempting to skip the adjustments and jump straight into welding, but trust me—those few extra minutes spent dialing in the settings can make all the difference between a frustrating session and a smooth, efficient one. And as you’ve seen, it’s not all that complicated.
Once your auto-darkening welding helmet is set up correctly, you can stop worrying about the gear and start focusing on perfecting every weld.
