Have you ever wondered why some auto-darkening welding helmets feel dependable, while others become unreliable the moment you change position?
A truly safe hood reacts the instant the arc strikes and stays consistently dark, even in tight corners or angles. Much of that comes down to arc sensor count and their placement. These sensors act as the hood’s “eyes,” detecting the arc from different positions to keep the lens responsive.
The number of sensors matters, but placement matters just as much. Even a feature-packed welding helmet can struggle if they get blocked by your hand, the workpiece, or your position. That’s when FLICKERING or inconsistent darkening can start to appear.
For beginners, this can make learning far more frustrating. When you’re trying to read the puddle and maintain control, the last thing you need is a lens that reacts unpredictably. A well-designed arc sensor LAYOUT helps the hood perform consistently in real-world conditions.
In this article, we’ll look beyond marketing claims and explain how sensor count and placement affect helmet performance, reliability, and visibility in actual welding situations.
What Sensor Count Actually Means In An Auto-Darkening Helmet
When people hear the word “count,” they usually assume it’s a straightforward numbers game, that more arc sensors must equal better protection. In my early days, I believed that too, until I stopped reading spec sheets and started paying attention to how welding helmets actually behave in the real world.
At the most fundamental level, these photo sensors are light detectors, waiting for that sudden burst of an arc to tell the lens to darken. When the light intensity spikes, their sensitivity picks up that flash in a fraction of a second.
It sounds simple until you strike an arc at an odd angle, tuck into a corner, or weld around a pipe. That is where things get interesting. Technically, a helmet might have “enough” sensors to TRIGGER, but that doesn’t mean they can actually see the arc from where you’re tucked.
The Difference Between Minimum and Effective Coverage
Think of a truck’s headlights: two of them light the road just fine until you’re turning a sharp corner or something blocks your path. In welding terms, “MINIMUM” means the lens will darken if at least one sensor spots the arc. “EFFECTIVE” coverage means the lens stays dark even when your torch, your hands, or the workpiece itself partially obstructs the view.
I’ve worn hoods that met the minimum criteria but still flickered the moment I leaned in or changed my stance. That flickering doesn’t just hurt your eyes; it shakes your confidence.
However, a higher count doesn’t automatically fix the problem. I’ve used four-sensor hoods that struggled because they were bunched too closely together, while a thoughtfully designed two-sensor model stayed rock-solid on the same job.
Why Placement Matters as Much as Sensor Count
It sounds paradoxical, but it’s simple: DISTRIBUTION and ANGLE matter just as much as the total number. If the sensors are clustered in one zone, you’re still vulnerable the moment you move into an awkward pose.
Now, when I see “number of sensors” count on a box, I’m not looking for the BIGGEST number- at least 3. I’m looking for trust. I want to know if that lens will respond consistently when my body or the joint blocks a clean line of sight. That is what separates an auto-darkening welding hood you have to “manage” from one you can rely on without a second thought.

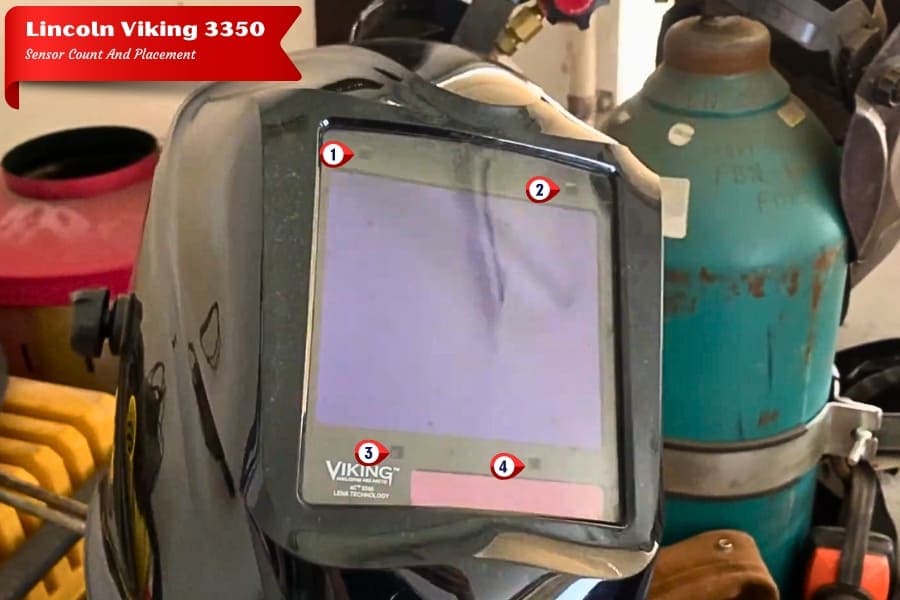

For example, consider the Lincoln Electric Viking 3350 welding helmet. Its auto-darkening filter has four arc sensors positioned on the top-right, top-left, bottom-right, and bottom-left areas of the front panel. The following image explains this:
Why Placement Of Arc Sensors Matters More Than Count
Before the first time I realized arrangement mattered more, I thought something was wrong with my technique. The helmet came with high ratings, had multiple photo sensors, and looked solid on paper, yet it kept “blinking” at the worst moments!
It wasn’t until I paid close attention to when it failed that the pattern showed up. I noticed that every issue happened when I was out of position, reaching around a joint, or working inside a tight space. That’s when I stopped counting and began paying attention to where they are placed.
After all, actual welding rarely happens in clean, textbook conditions, right?
Depending on the layout, they work within a cone of visibility, and their ANGLE and SPACING determine whether they catch the arc even when something blocks direct light. If they are mounted too close together or aimed too narrowly, they end up watching the same space.
On a flat bench weld, that’s fine, but for overhead processes, or inside a frame or around pipes, that overlap creates blind spots fast.
I was fabricating inside a structural corner where my lead hand completely shadowed the arc. My welding helmet had four sensors, but all of them were clustered near the top, and the lens flickered every time I shifted.
However, later on, I switched to Optrel Crystal 2.0, one of the best auto-darkening models with three sensing points spread wider and angled outward, and the problem vanished. Same job, same weld – completely different experience!
I’ve come across designs that struggle, simply because they’re optimized for straight-on viewing. However, in “real-est” workshop environments, we’re constantly twisting, crouching, and blocking light, so a well-balanced placement of these light-detection points is what should account for that reality.
I say – the finest welding helmets don’t just sense light; they also ANTICIPATE how we move.
How Blocked Sensors Fail In Tight And Out-Of-Position Welds
When you boil it down, the logic is incredibly simple: a helmet cannot react to what it cannot see.
In a real workshop, something is almost always in the way – especially when you’re crammed into a tight space or welding out of position. If you haven’t experienced this yet, you will the moment you start tackling corners, pipes, or overhead joints.
I’ve lost track of how many times I’ve been wedged into a tight corner, only for my right hand to instinctively creep forward to steady the torch. From my point of view, the arc is right there. But from the sensor’s perspective, the arc has vanished because my own glove is blocking its view.
That hand-block is just one example. In the field, we usually deal with three everyday realities that constantly threaten to blind a poorly designed hood:
Joint Geometry: Corners, frames, and box sections naturally hide the arc. I remember welding inside a structural box frame where the joint itself acted like a barricade. Every time I rolled my wrist, my glove blocked the arc sensors. The lens didn’t just fail to darken; it flickered heavily – which is worse. That erratic flickering is what catches you off guard and ruins your rhythm.
The Curve of a Pipe: My buddy Oliver, a veteran welder with over a decade of hardcore field experience, always says that pipe welding is the ultimate test of an auto-darkening helmet. As you travel around the circumference, the pipe wall repeatedly shields the arc from the hood. I’ve seen hoods fail and flicker at the exact same spot on every single rotation because their ‘eyes’ couldn’t see around the curve. A wider sensor layout is the only thing that fixes this if you don’t have a pancake hood.
Overhead Stack-Up: Large workpieces like heavy beams and thick plates don’t just sit there; they actively block and redirect arc light depending on your angle. This gets even worse during overhead welding, where your hands, the torch, and the material all stack up between the arc and the sensors. Without properly laid-out nodes, a normal day of welding turns into a series of frustrating micro-flashes that slowly wear you down.
Across all of these scenarios, the pattern is identical: poor photo sensor placement creates blind spots, turning standard welding stances into trust-breaking moments.
After years of dealing with these frustrations, I’ve come to think of welding helmet sensors like security cameras. If you install all the cameras on the exact same corner of a building, a single obstruction blinds the entire system. But if you spread them out and angle them intelligently, one camera will always have eyes on the target.
It’s straightforward logic, but it makes all the difference between a hood you have to fight and one that just works.
Real-World Welding Situations That Expose Sensor Weaknesses Fastest
When I’m talking to new welders, this is the part I wish someone had explained to me early on.
Most auto-darkening welding helmets seem fine at first, especially on open, flat practice welds. But then you step into real shop work, change postures, or get pushed into a tight spot, and suddenly it starts acting differently. It’s vital to remember here that that’s not you doing something wrong; that’s the task, EXPOSING THE LIMITS of the equipment.
Interestingly, certain situations bring out those shortcomings almost immediately. Let’s walk through the ones that reveal limitations the fastest, so you know what to expect before they surprise you!
1. Tight Joints
Tight joints are usually the first place you’ll see the struggle… you don’t need years under the hood to experience this.
While welding, the moment you get into a corner or inside a frame, the joint itself starts blocking the arc light. I’ve welded inside box sections where everything looked fine to my eyes, but the lens kept “blinking” because it obviously couldn’t “view around” the steel.
It’s like trying to watch something through a keyhole; if the arc sensors aren’t spaced out properly and angled correctly, they lose sight of the arc the moment you lean in.
2. Low-amperage TIG Processes
From my experience, low-amp TIG welding is the most unforgiving test for any helmet. The arc is softer, less intense, and incredibly easy for poorly positioned detectors to miss.
I vividly recall my FIRST experience with this. I dialed down the amperage to work on thin stainless steel, and suddenly, a persistent lens flicker appeared that I had never encountered at higher settings. To put it simply, it is like trying to hear a whisper in a noisy room. Only well-placed, highly sensitive sensors can consistently pick up that faint signal.
3. Reflective And Confined Environments
Reflective and confined spaces can also easily confuse our helmet’s “eyes”. Bright reflections bouncing off shiny metal surfaces, such as aluminum or stainless steel, disperse light in odd directions, while confined spaces entirely LIMIT direct exposure.
I’ve welded inside tanks and large pressure vessels where the arc was pretty bright, but indirect. There, hoods with inefficient placement “fought to decide” what they were seeing, while better designs stayed locked in the same shade and seamlessly.
4. Pipeline Welding
As we’ve seen, pipeline welding is one of the ultimate ways to test if a welding helmet’s sensors are actually laid out effectively. There is a reason why pancake hoods are best suited for this job!
When you are fabricating your way around a pipe, the curvature of the metal constantly blocks the arc at different points. One moment, everything is perfect; the next, the arc slips just out of the line of sight. You will often find your lens FLICKERING at the exact same spot on every single rotation, even if your hands are perfectly steady.
It is a lot like driving through a blind curve with misaligned mirrors. You know the road is ahead, but you are constantly guessing because you cannot see. That is why pipe work exposes bad sensor positioning so QUICKLY. The arc never stays in one predictable spot, and your auto-darkening helmet has to keep up with the curve the entire way around.
5. Overhead And Vertical Welding
Beyond pipeline and TIG work, overhead and vertical welding also deserve special mention.
In my experience, the moment your hands go up and you change the torch angle, the arc sensors begin losing their view of the arc. I have had overhead welds where my glove, the torch body, and the joint itself all blocked the same detection nodes simultaneously, causing the lens to hesitate mid-bead.
It took a few of these frustrating moments to realize that the issue wasn’t my technique. The real problem was a flawed layout in my auto-darkening helmet.
Also Read: Auto-darkening Helmet Troubleshooting Guide
Choosing And Testing Auto-darkening Welding Helmets For Reliable Sensor Performance
After seeing how quickly poor sensor placement reveals itself in the field, choosing a helmet stops being about a list of features and starts being about trust.
It is a mindset that every welder eventually comes to appreciate. As we have established, you cannot judge lens performance by a spec sheet alone. Instead, you have to consider how that lens will behave in the environments where you actually work.
This next section is about what to look for when shopping for a hood, and exactly how I check a helmet before trusting it on a real job.
A. First, the must-haves when choosing an auto-darkening helmet.
When evaluating a new hood from the arc sensors’ perspective, these are the specific details I focus on:
Layout and Angle: I look for sensors that are spaced out and angled outward rather than clustered together. Properly spaced photo sensors keep the arc in a direct line of sight even in the trickiest welding positions, which matters far more than raw numbers.
Consistent, Flicker-Free Darkening: The lens must remain stable. It should not flicker as you move, change angles, or partially obstruct the view of the arc. This stability depends entirely on the correct spacing of those sensing points.
Adjustable Sensitivity and Delay: Most professional-grade welding helmets allow you to fine-tune the sensitivity and delay settings, which is essential for low-amperage processes like TIG.
Clear and Uniform Optics: A clear, uniformly dark lens ensures excellent visibility, reducing eye strain and improving your puddle control during long welds. If you are a regular reader here, you already know I have covered this topic in detail in a previous post.
Once a helmet ticks all of these boxes, I run it through a few simple workshop tests to see how the gear actually behaves in practice.
B. Simple sensor-reliability checks in the shop
Okay, here we keep it as real as possible, not recreate lab conditions – we want to know how the lens responds to real-world welding environments. These tests are pretty simple, so you might want to consider this your guide to EVALUATING any helmet and ensuring it is dependable enough.
Angle-change Test
What To Do: We strike an arc and DELIBERATELY ALTER our torch angle while welding – leaning in, pulling back, and shifting side to side. We also rotate our wrist slightly, the way you would in a corner.
What To Watch For: The lens should remain dark the entire time. Any flicker or hesitation, as we move, indicates that the sensing nodes lose the arc when our posture changes.
Hand-block Test
What To Do: While welding, slightly bring your lead hand forward. For instance, if you’re right-handed like me, bring it a little forward, just enough to PARTIALLY BLOCK the arc, as it would in a tight joint. We also do this from different angles.
What To Watch For: A trustworthy auto-darkening welding helmet should stay locked at the same level of darkness. If the lens hesitates or flashes, we should understand that the arc sensors are too clustered or angled incorrectly.
Out-of-position Test
What To Do: For this, I proceed to weld overhead or vertical on scrap, forcing myself into a difficult position, or trying to change my posture mid-bead, if possible.
What To Watch For: CONSISTENCY is the key here. A balanced layout should trigger lens reactions the same way when you’re perched out of position, as it does on a flat plate – any inconsistency means weak alignment.
Low-amp Sensitivity Test
What To Do: I lower the amperage, especially with TIG welding, and lay down short beads – then stop and restart the arc a few times.
What To Watch For: Here, we need to look for how consistently the lens reacts. The lens should still DARKEN UNIFORMLY without requiring extreme sensitivity settings.
If your selected model passes these tests with flying colors, take it as a sign that it’s ready for real shop work, the daily grind. Some of our most trusty welding helmets that meet this standard include the Lincoln Viking 3350 (review) and ESAB Sentinel A50 (learn more).
While you can conduct those tests before welding, it’s equally vital to confirm that the lens darkness stays stable mid-weld, which brings us to a few practical checks you’ll want to carry out.
C. Practical Checks To Avoid Mid-Weld Darkening Failures
Here is exactly what I recommend doing, particularly before using a new auto-darkening hood for the first time -to ensure it performs flawlessly on the job:
The Sensor Block Test: Under normal shop lighting, cover one sensor at a time with your finger and observe how easily the lens reacts to a consistent light source. This ensures every individual node is firing.
The Shadow Rehearsal: Hold your torch exactly as you would during a real weld, without striking an arc. Take a close look to see if your hand or the torch body naturally shadows multiple sensing points at once.
The Posture Check: Put on your welding helmet and move into your planned position, whether that is a tight corner, a pipe wrap, or overhead. Pay attention to whether the joint geometry cuts off the mask’s line of sight to the weld path.
The Ambient Light Test: Step between the bright and dim areas of your workplace to check the sensitivity. You want to ensure the lens stays stable and doesn’t react erratically to overhead shop lights or sudden shadows. If it doesn’t work, it’s always wise to change the lenses and avoid unseen problems.
The Dry Run: Before you strike the arc, run through your actual welding motion from start to finish. This confirms that your body or hands won’t shift into a position that blocks the arc sensors mid-weld.
These small habits take less than a minute, but they prevent major surprises once you are under the hood and trying to focus on your bead.
The Bottom Line: Choosing Trust Over Spec Sheets
If I could sit down with every new welder for five minutes, this is one of the first things I would tell them: before you chase specific brands, price tags, or the supposed ‘best’ welding helmet on the market, look closely at the photo sensor placement. Most welders do not think about it until their gear lets them down, and by then, it has already cost them their comfort, focus, and confidence.
Properly aligned auto-darkening arc sensors work quietly in the background. They adapt as you move, lean, and weld out of position, without ever pulling your attention away from the puddle.
In real shop conditions, that level of DEPENDABILITY is critical. Whether you are new to the craft or a seasoned professional, prioritizing a well-designed sensor layout means you are protecting your eyes and your peace of mind.
Once you have worn a helmet that genuinely keeps up with you, you will find it impossible to settle for anything less.
